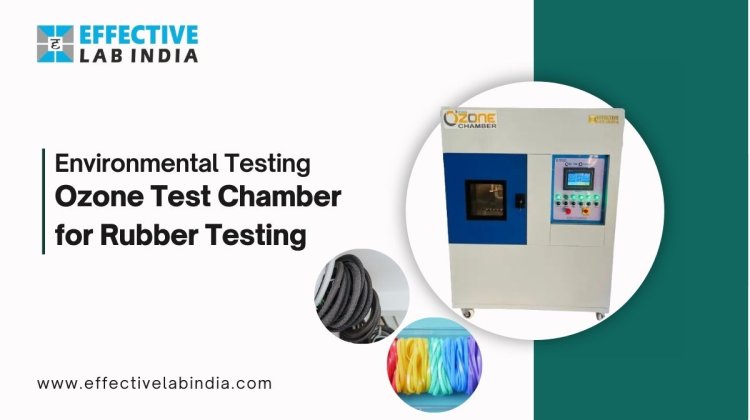

Environmental Testing Ozone Test Chamber for Rubber Testing

In today’s fast-paced industries, especially those involving rubber products, ensuring long-term durability and resistance to environmental stress is non-negotiable. One of the biggest threats to rubber is ozone exposure, which can silently degrade the quality and performance of rubber materials over time.

That’s where ozone test chambers come into play.

At Effective Lab India, we provide advanced Environmental Testing Ozone Test Chambers designed specifically for rubber testing, helping manufacturers simulate real-world ozone aging conditions right inside their labs.

In this blog, we’ll walk you through everything you need to know about ozone test chambers for rubber testing, how they work, why they matter, and what makes Effective Lab India a trusted name in this field.

What is an Ozone Test Chamber?

An ozone test chamber is a specialised environmental testing machine used to simulate ozone-rich atmospheres. It’s designed to assess how rubber materials and products respond to prolonged ozone exposure.

Ozone, even in small concentrations, can cause cracking, stiffening, and deterioration of rubber surfaces. With this chamber, industries can:

• Predict how rubber components will behave over time
• Improve product formulations
• Ensure quality compliance
• Reduce product failures in the field

Why is Ozone Testing Important for Rubber?

Rubber is widely used in automotive seals, gaskets, hoses, cable insulations, tires, and even medical devices. All of these products are exposed to air, sunlight, and ozone — all contributing to oxidative aging.

Here’s why ozone testing is essential:

✅ Crack Resistance: Understand how your rubber resists surface cracks under static or dynamic strain.
✅ Material Life Prediction: Estimate the life expectancy of rubber components in different environments.
✅ Quality Control: Ensure every batch meets international standards.
✅ Product Development: Compare materials and improve formulations for longer durability.

How Does an Ozone Test Chamber Work?

The ozone aging test chamber recreates a controlled atmosphere with a precise ozone concentration. Here’s how it works in simple steps:

1. Sample Mounting: Rubber samples (in static or dynamic condition) are placed inside the chamber.
2. Controlled Ozone Generation: The chamber generates ozone by UV light or corona discharge.
3. Set Parameters: You can set temperature, humidity, airflow, and ozone levels.
4. Exposure Time: The test runs for hours or even days, depending on the requirement.
5. Visual Inspection: After the test, the samples are checked for cracks, hardening, or deterioration.

With Effective Lab India’s chamber, everything is digitally controlled and monitored, ensuring high accuracy and repeatability.

Features of Effective Lab India’s Ozone Test Chamber

At Effective Lab India, we’ve engineered our ozone test chambers with modern technology, user convenience, and industry standards in mind.

Here are some top features:

• Programmable Touchscreen Controller for precise control
• Wide Temperature Range (Room temp to 60°C or as per need)
• Accurate Ozone Concentration from 10 to 250 pphm (customizable)
• Built-in Safety Features (overheat protection, ozone leak detection)
• SS304 Inner Body with corrosion-resistant structure
• Static and Dynamic Sample Mounting
• User-friendly Interface
• Compliance with ASTM D1149 & ISO 1431

Applications of Ozone Test Chambers in the Rubber Industry

Here’s how different sectors benefit from ozone testing:

Why Choose Effective Lab India?

If you're serious about quality assurance in rubber products, Effective Lab India is your go-to partner for ozone testing chambers.

Here’s why customers trust us:

• Customizable Designs: Built to fit your exact testing requirements
• Expert Support: Pre-sales and post-sales guidance
• Competitive Pricing: High quality without the premium tag
• Made in India: Indigenous technology, built for Indian industries
• Fast Delivery & Installation: Quick turnaround from inquiry to installation

Contact Us Today!

Ready to take your rubber testing to the next level?

Effective Lab India is here to help. Get in touch with us for product demos, pricing, and technical specs.
